• Oscillating Thermostatic Mixer
  • DHS-100
  • Temperature control range: room temperature +5℃ to 100℃, oscillation speed range: 200 to 1800rpm.
  • DHS-100
  • Oscillating Thermostatic Mixer
  • Temperature control range: room temperature +5℃ to 100℃, oscillation speed range: 200 to 1800rpm.
DHS-100 Thermostatic Mixer (also known as a thermostatic shaker, incubator, or oscillating thermostatic metal bath) uses a brushless DC motor and microprocessing technology combined with intelligent PID control. It can quickly stabilize after reaching the target temperature, saving waiting time and combining the functions of constant temperature and oscillation perfectly. This greatly shortens the experimental operation time and improves the efficiency of workers. It is an ideal automated tool for sample incubation, catalysis, mixing, and preservation of reaction processes. The thermostatic mixer has multiple functions such as heating and oscillation.
Product Features
1. Users can independently turn on or off the constant temperature, oscillation, and timing functions, achieving multi-purpose use and improving equipment utilization;
2. The metal module is adopted, with high temperature uniformity and convenient module replacement;
3. The instrument has fast heating speed, uniform heating, accurate temperature control, and high stability;
4. Microprocessor control ensures superior temperature stability and uniformity;
5. The DC brushless motor is low-noise, long-life, and maintenance-free;
6. The LCD display shows real-time information of current temperature and speed;
7. It has short oscillation jog function and temperature calibration function;
8. The oscillation speed is accurate with small fluctuations;
9. An alarm signal is sent out when the program is finished running;
10. Optional power-off recovery function and automatic startup function meet different needs of users;
11. It supports module classification and custom calibration function.


Technical Specifications
Model: DHS-100
Temperature control range: Ambient temperature +5℃ ~ 100℃
Heating time: ≤ 30 minutes (from 20℃ to 100℃)
Temperature uniformity/stability: ≤±0.3℃/±0.1
Oscillation amplitude and mode: 3mm (horizontal rotation)
Oscillation speed range: 200~1800rpm
Standard module: 35×2.0ml
Extended time setting: 99h59min
Multi-point operation: Supported
Multi-point cycle operation: Supported (maximum 99 times)
Automatic preheating: Supported
Automatic start-up: Supported
Power-off automatic recovery: Supported
Maximum temperature: 100℃
Product size: 280×100×185 mm
Product weight: 8.2 kg

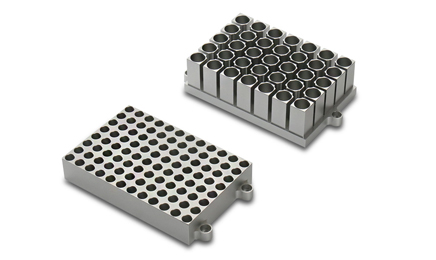

Module Model Selection
Model Aperture and Tube Number Maximum Temperature Maximum Speed
DW30 96×0.2ml Standard Plate 100℃ 1500rpm
DW31 54×0.5ml Centrifuge Tube 100℃ 1500rpm
DW32 35×1.5ml Centrifuge Tube 100℃ 1500rpm
DW33 35×2.0ml Centrifuge Tube 100℃ 1500rpm
DW34 15×0.5ml+20×1.5ml Centrifuge Tube 100℃ 1500rpm
DW35 24× φ12mm Test Tube 100℃ 1200rpm
DW36 32×0.2ml+25×1.5ml Centrifuge Tube 100℃ 1500rpm
DW37 32×0.2ml+10×0.5ml+15×1.5ml Centrifuge Tube 100℃ 1500rpm
DW38 103×67×30 (Square Groove Module) 100℃ 1500rpm
DW39 96×0.2ml Enzyme-Linked Immunosorbent Assay (ELISA) Plate (flat bottom) 100℃ 1500rpm
DW40 24×5ml centrifuge tube 100℃ 1200rpm
DW41 12×15ml tube 100℃ 600rpm
DW42 6×50ml tube 100℃ 600rpm
DW43 15×10ml tube 100℃ 600rpm
Customized (non-standard) Available for customization / /


Single Page - Color Page
Name: Author: Action:
Oscillating Thermostatic Mixer DHS-100 dry bath Download


Related products
Name: Model:
Thermostatic Metal Bath DHC-100
Oscillating Thermostatic Mixer DHS-100
Product List
DHS-100 Unit
Host Machine Unit
Metal module piece
Special Screwdriver (used for disassembling the mo Piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
