• Centrifuge mixer
  • SCM-4K
  • Centrifuge speed: 1500~4000rpm, operation modes: centrifugation, mixing, centrifugation + mixing, 8-tube carrier, 1.5/2mL centrifuge tube carrier
  • SCM-4K
  • Centrifuge mixer
  • Centrifuge speed: 1500~4000rpm, operation modes: centrifugation, mixing, centrifugation + mixing, 8-tube carrier, 1.5/2mL centrifuge tube carrier

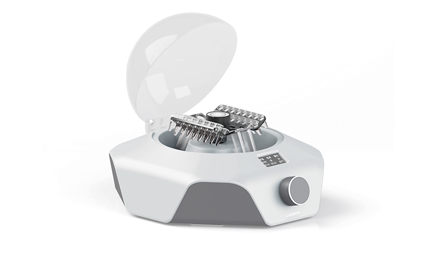

Centrifuge mixer SCM-4K integrates centrifugation and mixing in one step, with multiple operating modes for flexible carrier selection, significantly improving PCR laboratory throughput and ensuring uniformity between wells.
Product Introduction
Centrifuge mixer SCM-4K integrates centrifugation and mixing in one step, with multiple operating modes for flexible carrier selection, significantly improving PCR laboratory throughput and ensuring uniformity between wells.
Variable-speed centrifuge vortex mixer, compact design, high cost-effectiveness. Programs set centrifugation and mixing operations, suitable for centrifuge vortex mixing of multiple microtubes and 0.2ml strip tubes. Using rotate-mix-rotate technology, sample processing cycles are automatically performed through programming, capable of simultaneously handling 12 2ml tubes, saving time significantly and eliminating the hassle of transferring to other equipment for vortexing after each centrifugation.


Product Features
○ Polarized shutdown, induction cover protection.
○ Graded locking, convenient operation.
○ Compound knob, intelligent one-button operation.

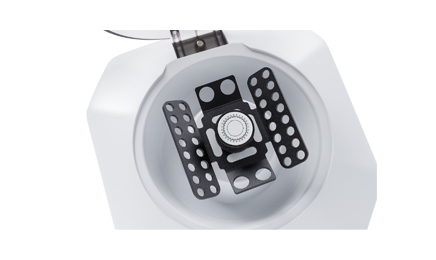

○ Optional rotor replacement to accommodate various microtube sizes and 0.2ml strip tubes.
○ Vortex mixing mode with low, medium, and high options.


Application Range
Life Sciences — Basic research purposes (PCR diagnostic tests), used in microbiology, biochemistry, clinical trials, and industrial biotechnology laboratories..


Test Report

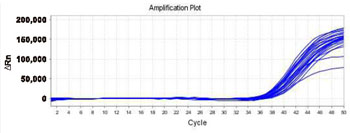

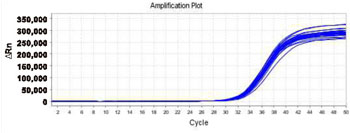

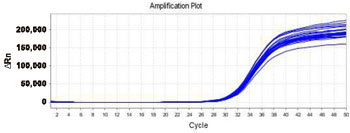

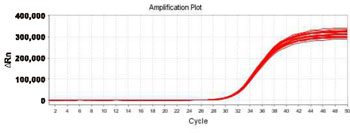

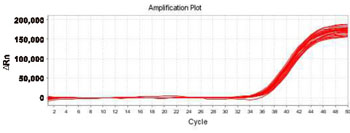

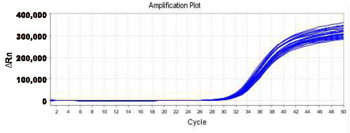

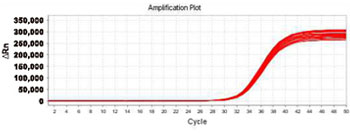

Detection channel Centrifuge only without mixing LAWSON SCM-4k mix + centrifuge
Fam channel High-pressure homogenizer Test Report 1 High-pressure homogenizer Test Report 2
Vic channel High-pressure homogenizer Test Report 3 High-pressure homogenizer Test Report 4
Rox channel High-pressure homogenizer Test Report 5 High-pressure homogenizer Test Report 6
Cy5 channel High-pressure homogenizer Test Report 7 High-pressure homogenizer Test Report 8


Test Datat
Detection channel Group information Centrifuge only without mixer SCM-4k 10 cycles of mixer + centrifuge
Fam channel Average Ct value
Ct Cv%		 30.81
0.89		 30.34
0.55
Vic channel Average Ct value
Ct Cv%		 31.89
1.05		 31.62
0.63
Rox channel Average Ct value
Ct Cv%		 38.80
2.17		 36.85
1.09
Cy5 channel Average Ct value
Ct Cv%		 31.57
1.20		 30.86
0.36
Notes: Experimental Overview
Experimental System: PFM5071 lyophilized powder;
Template: Human genome quadruple amplification detection, 24T/group;
Experimental Procedure: 50°C, 2min; 95°C, 5min; 50 cycles (95°C, 10s; 55°C, 40s).


Technical Parameters
Model: SCM-4K
Centrifuge Speed: 15004000rpm
Speed Adjustment: 100rpm
Operation Modes: Centrifuge, mix, centrifuge + mix
Mixing Intensity Levels: Strong, Medium, Gentle
Compatible Carriers: 8-tube carrier, 1.5/2mL centrifuge tube carrier
Carrier Locking Method / Locking Force: Quick-release knob / Multi-level
Program Memory: Yes
Program Cycle Number: 1999
Lid Shutdown: Inductive
Abnormal Vibration Shutdown: Yes
Power Adapter Input: AC 100~240V, 1.4A, 50/60Hz
Maximum Input Power: 60W
Dimensions: 218mm x 234mm x 136mm
Weight: ≤1.5kg
